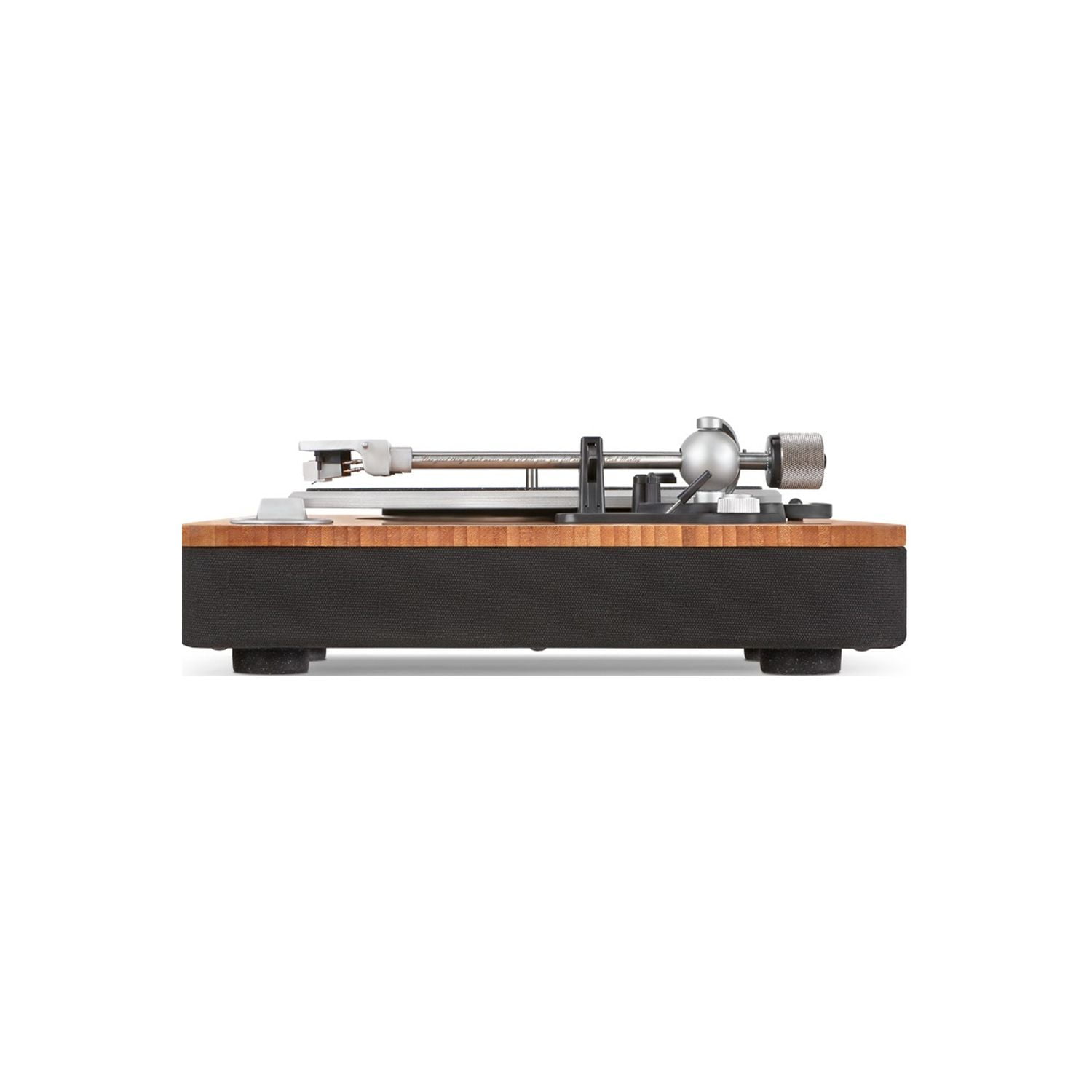

Type | : | Belt drive turntable, manual with auto start/stop |
Motor DC | : | servo-controlled |
Speeds | : | 33-1/3 RPM, 45 RPM |
Turntable Platter | : | Aluminum Alloy |
Wow and Flutter | : | Less than 0.3% |
Signal-to-Noise Ratio | : | 50dB |

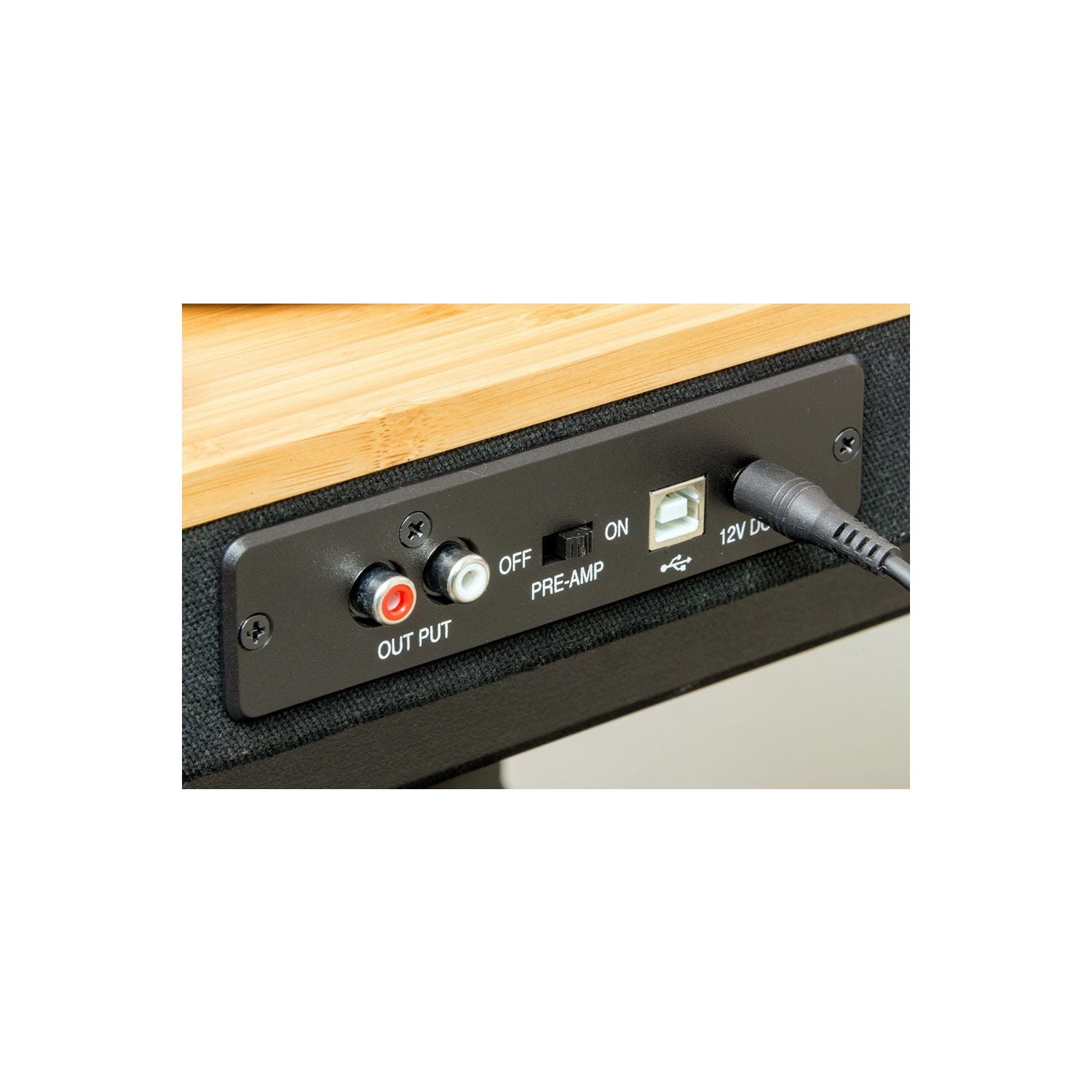

Output Level | : | Pre-amp OFF “PHONO”: 5mV nominal @1kHz, -10dB |
: | Pre-amp ON “LINE”: 250mV nominal @1kHz, -10dB | |
Phono Pre-Amp Gain | : | 34dB nominal, RIAA equalized |
Power Supply | : | Input: 100-240V AC, 50/60Hz, 0.3A |
Output | : | 12VDC, 250mA, 3W |
Dimensions | : | 420 mm W x 345mm L x 115mm H |
Weight | : | 4.03kg |
Replacement Stylus | : | ATN3600L Tracking Force: 2.5-3.5g (AT3600L) |

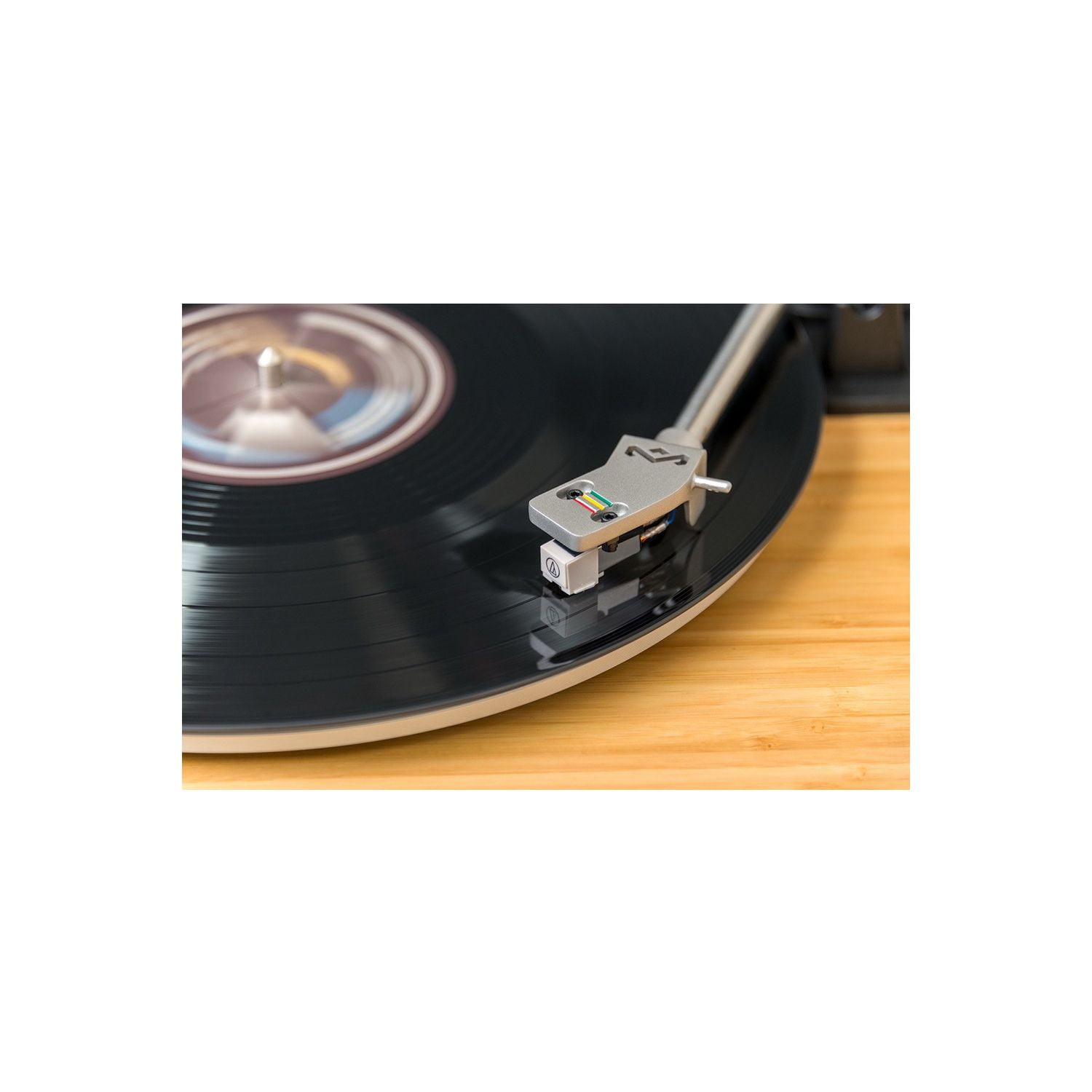

Cartridge Type | : | 1/2” mount |
Headphone Jack | : | 3.5 mm |
